New OEM Rear Propshaft G2 500/570/650/800/850 with XMR 1000 Rear Diff Conversion
Original price was: £216.72.£130.03Current price is: £130.03.
SHIPS FREE TO THE LOWER 48 STATES
Updated Can-am Rear G2 Outlander/Renegade 2019 and newer prop shaft.

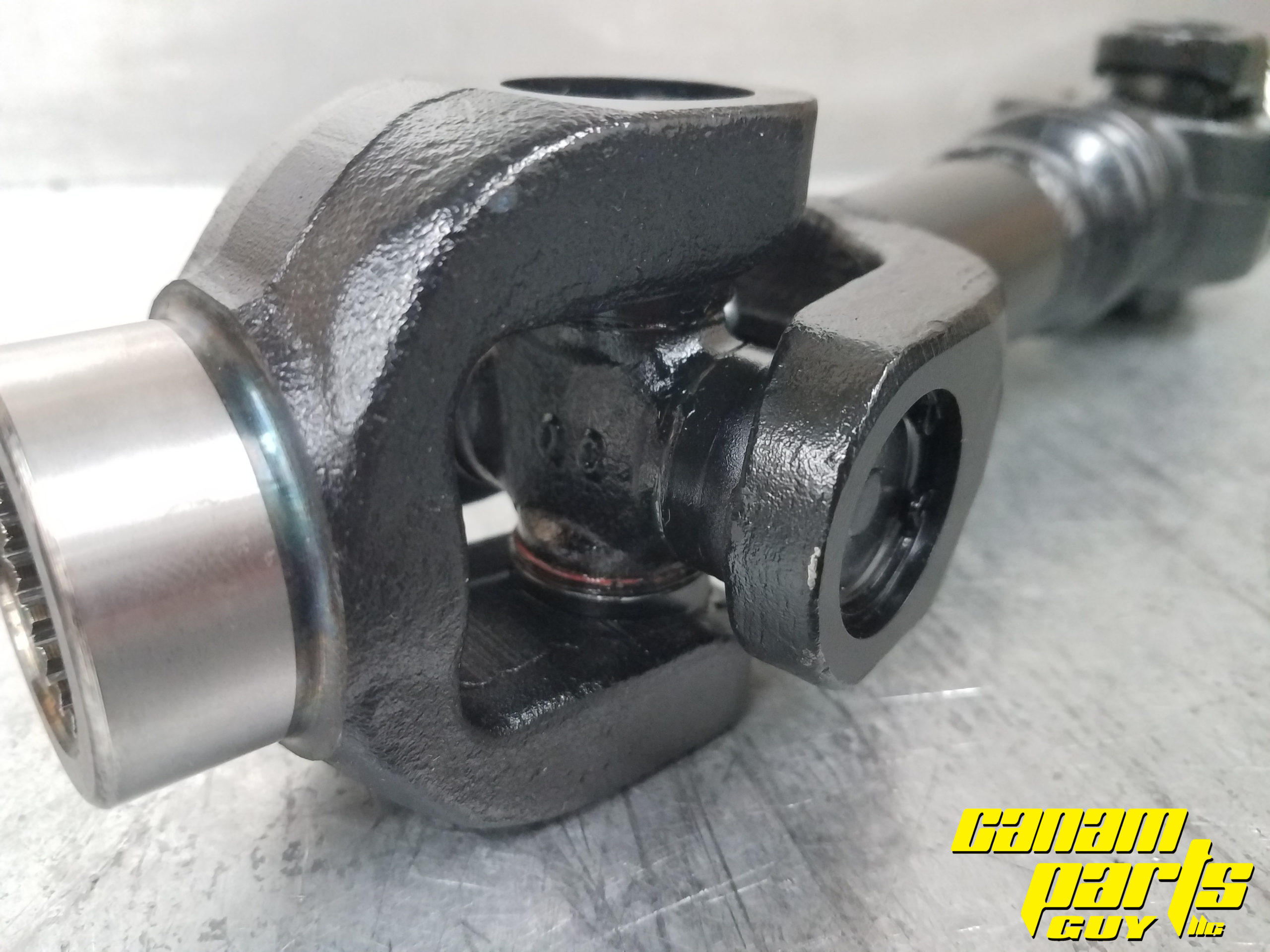

All new all OEM Shaft OEM U-joints.

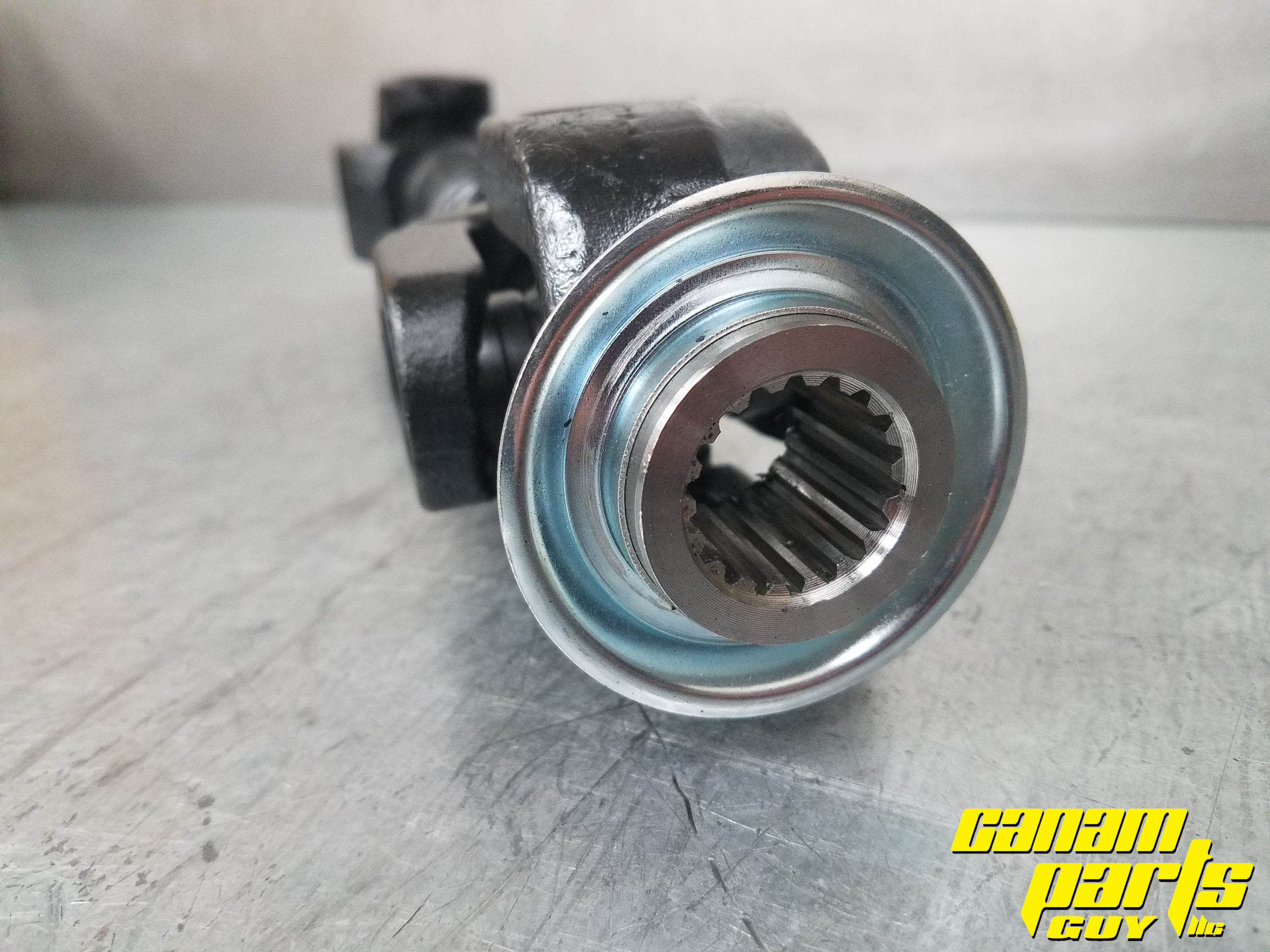

OEM protector ring installed
Input yoke swapped to 18 spline
This is the correct length for short wheel base single seat 500/570/650/800/850 Outlander or Renegade with 1000 XMR rear differential.
This will also work on 2015+ Outlander short wheel base, single seat 1000/1000R with 1000 XMR rear differential.
Direct replacement for 2015 and newer 800/850 XMR

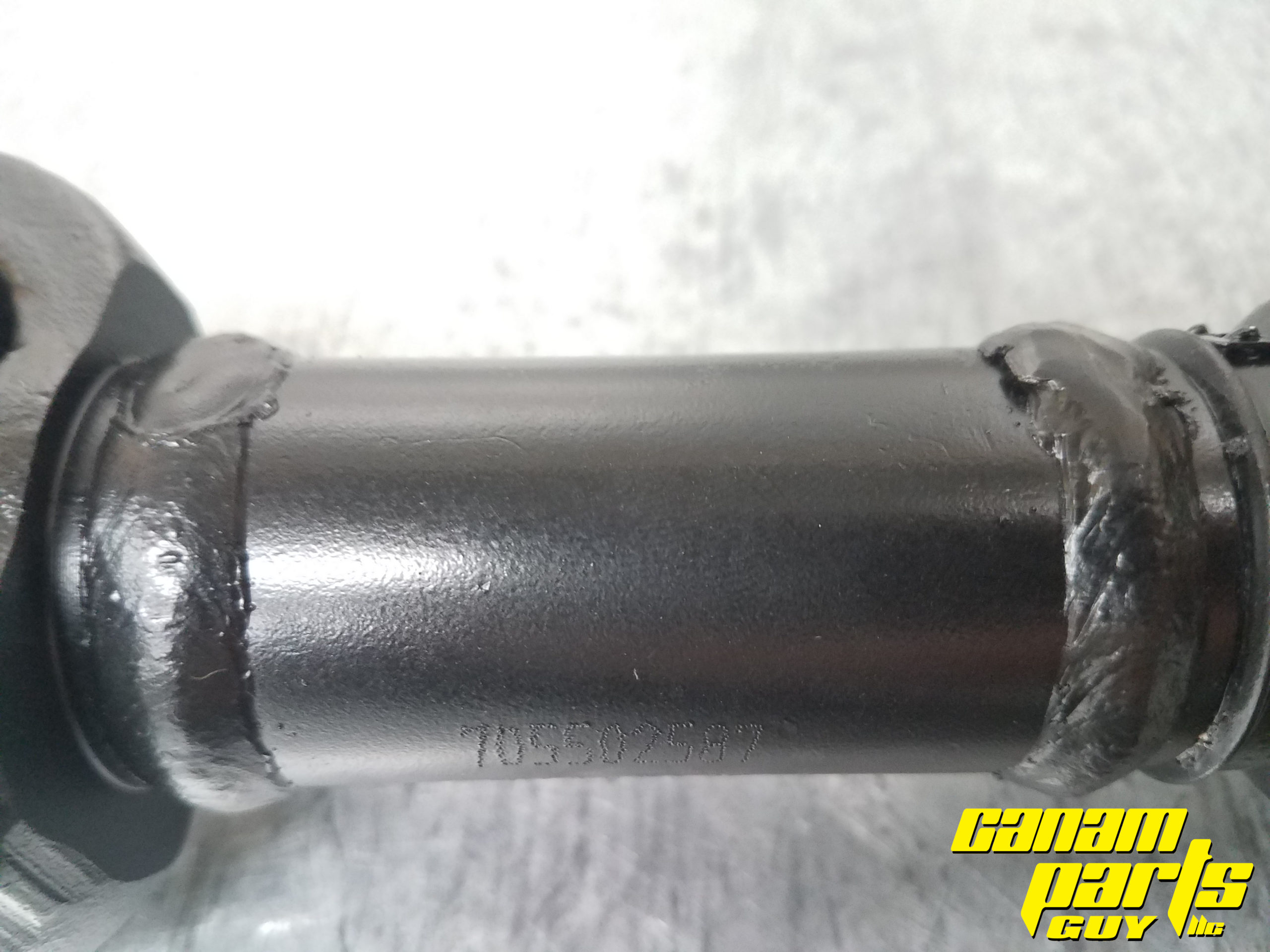

Current Part number: 703500988
Previous Part number: 703500858 703500931

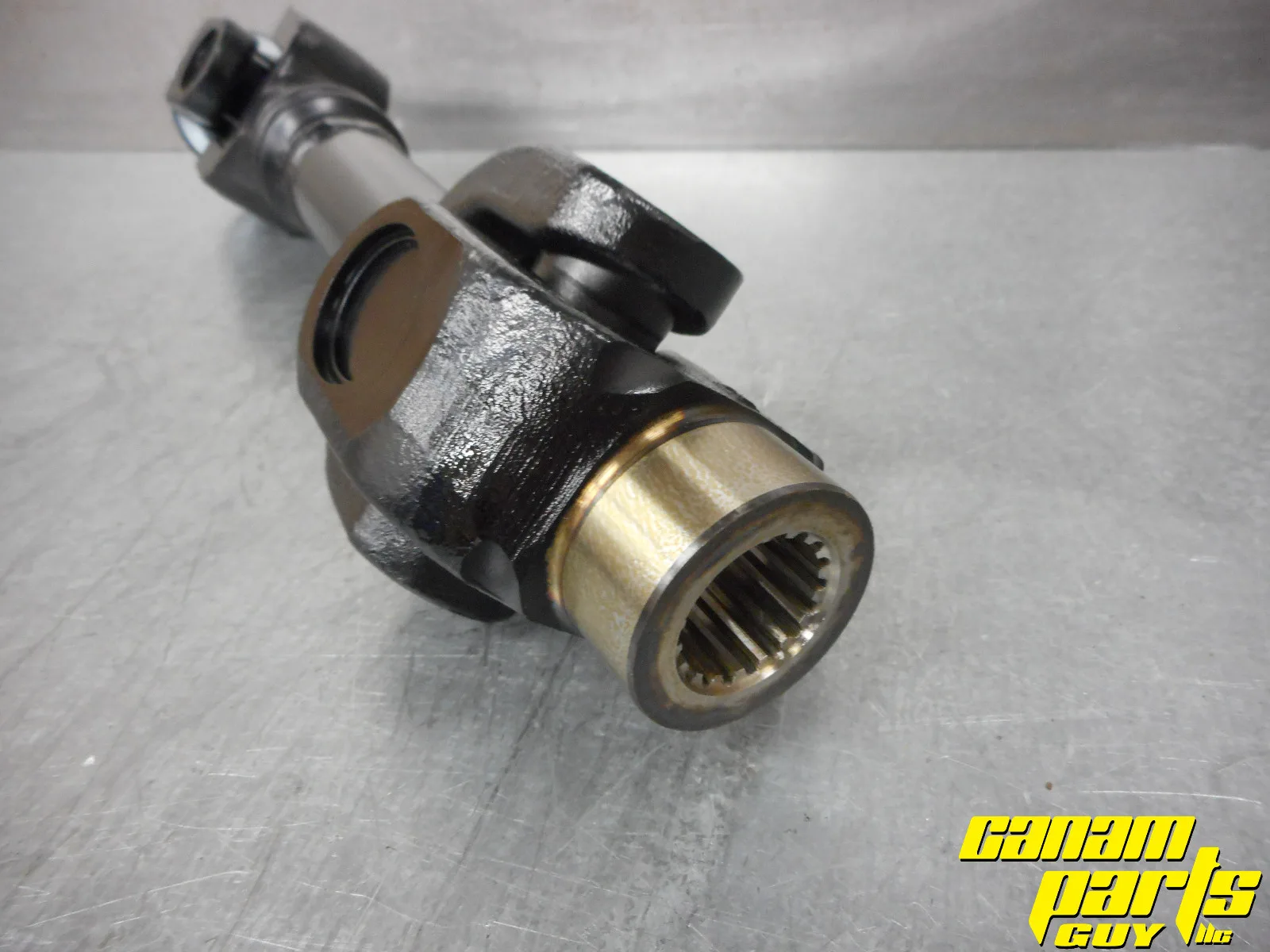

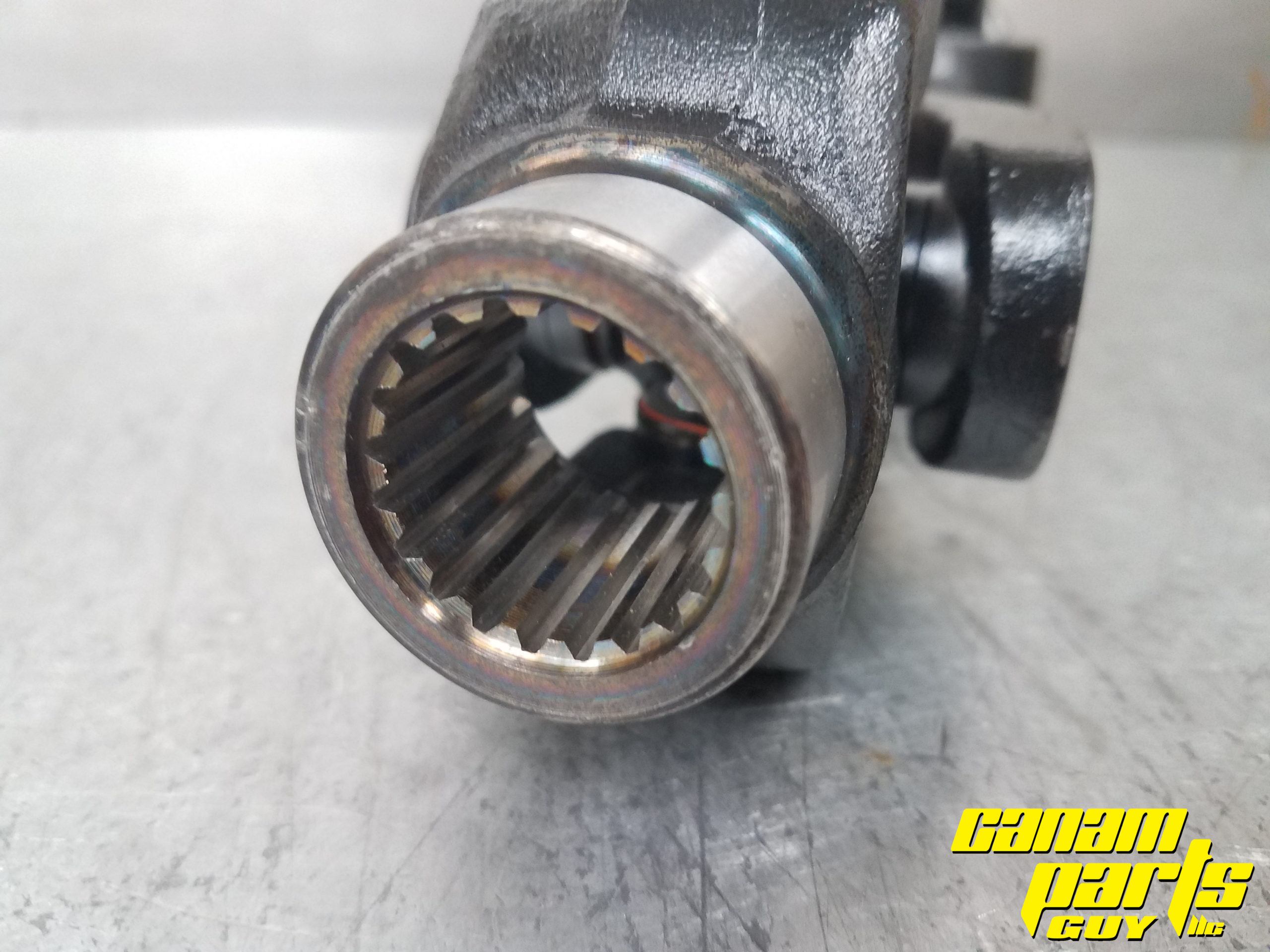

20 spline differential side yoke
18 spline gearbox side yoke
No wear ring needed
Related products
-
New OEM G2 500/570/650/800/850 Rear Propshaft Drive Shaft SWB
NEW Genuine Can-am Rear Prop Shaft for 2012-18 Outlander Or Renegade 500, 570L, 570, 650, 800R or 850.
Be sure to check part numbers before ordering if you have a 1000.
This will work on 2015+ Outlander 1000 non XMR/T3 machines (small gearbox).This updated shaft does not need wear ring as it is simply machined larger in outer diameter.
Current Part number: 703500986
Previous Part numbers: 703500925 703500855 70550140618 spline gearbox side yoke
Original price was: £233.82.£140.29Current price is: £140.29.
18 spline differential side yoke -

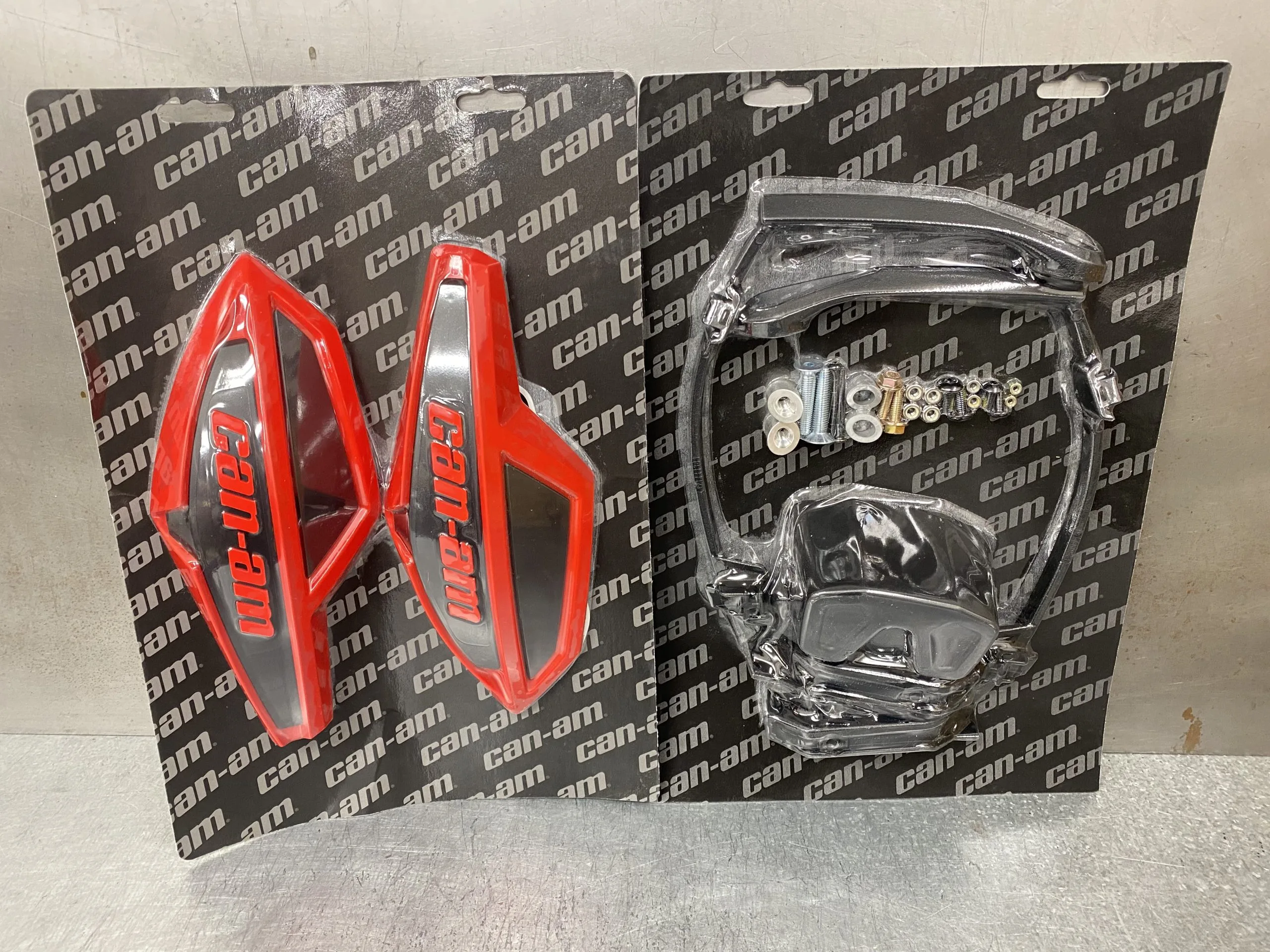

Viper Red Wind Deflector Hand Guard Kit W/ Mounting Kit Complete Wrap Around
Red wrap around wind deflector set with mounting kit. Fits Outlander, Renegade, & DS450. Both are brand new. Part numbers 715006118 & 715001378
Original price was: £123.57.£74.14Current price is: £74.14. -

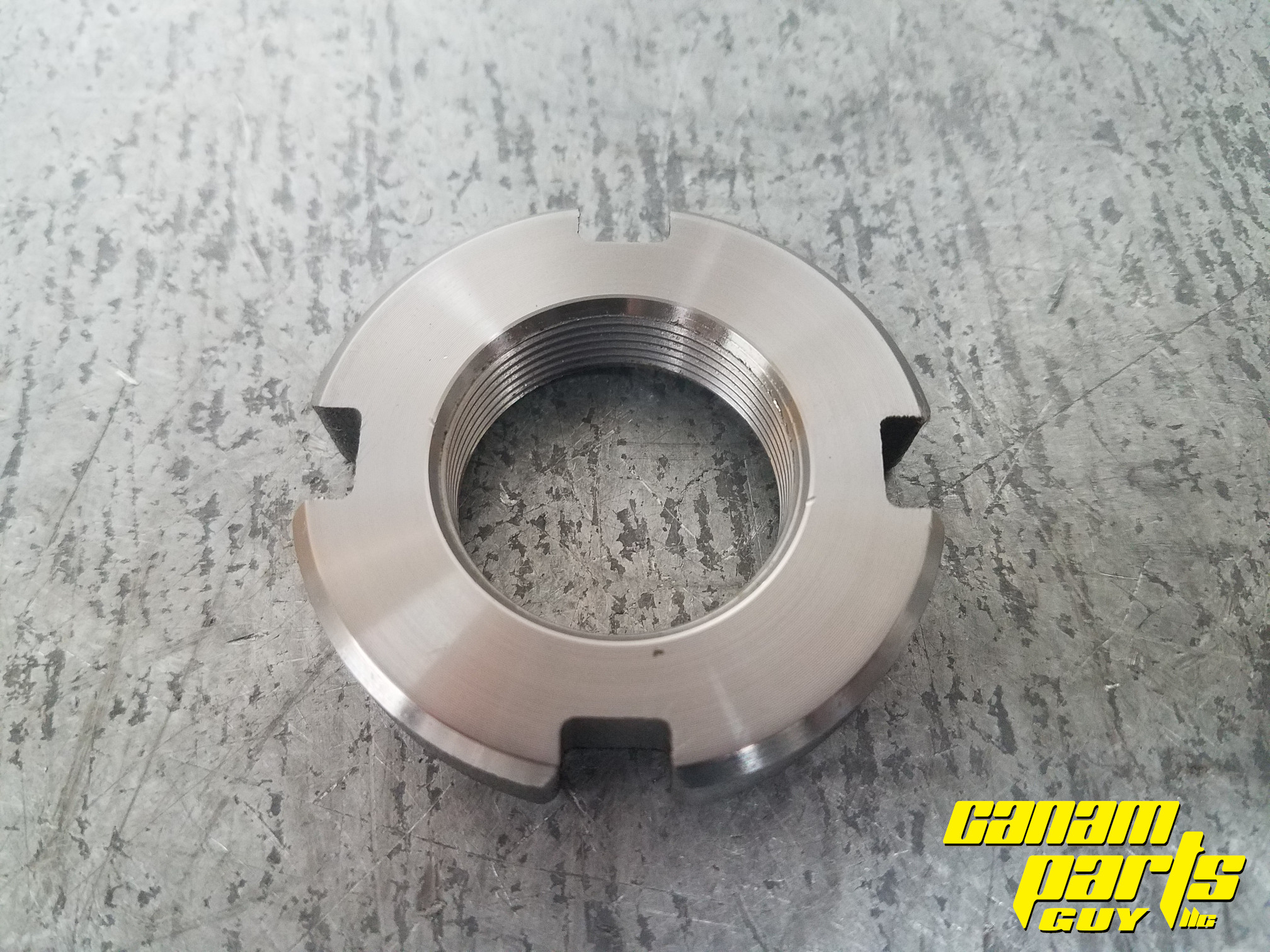

NEW OEM XMR Pinion Nut 705501550
New Oem Canam Pinion nut, this is spun on to the pinion gear to retain the bearings on the pinion gear of xmr differentials on ATV XMR’s G2 800/850/1000/1000R
This is not needed on 570 or 650 XMR models
The threads are M28x1.25 Right Hand the outer diameter is 51mm
Please check that this is the correct nut for your application
Part number 705501550
Original price was: £14.06.£8.43Current price is: £8.43. -
NEW Rugged 1 Inch Wide Wheel Spacer M10 Studs
Rugged wheels spacers are made from T6061 aluminum alloy and are precisely CNC machined for accurate dimensions. Spacers can be direct bolt on and can use OEM studs. If you are looking to widen the stance of your machine, clear larger tires or get some new wheels. These spacers are just what you need. These spacers are sold as a pair. One inch thick The bolt pattern is 4x137mm M10 studs Part number PAWS-1035
Original price was: £67.68.£40.61Current price is: £40.61.
Reviews
There are no reviews yet.
